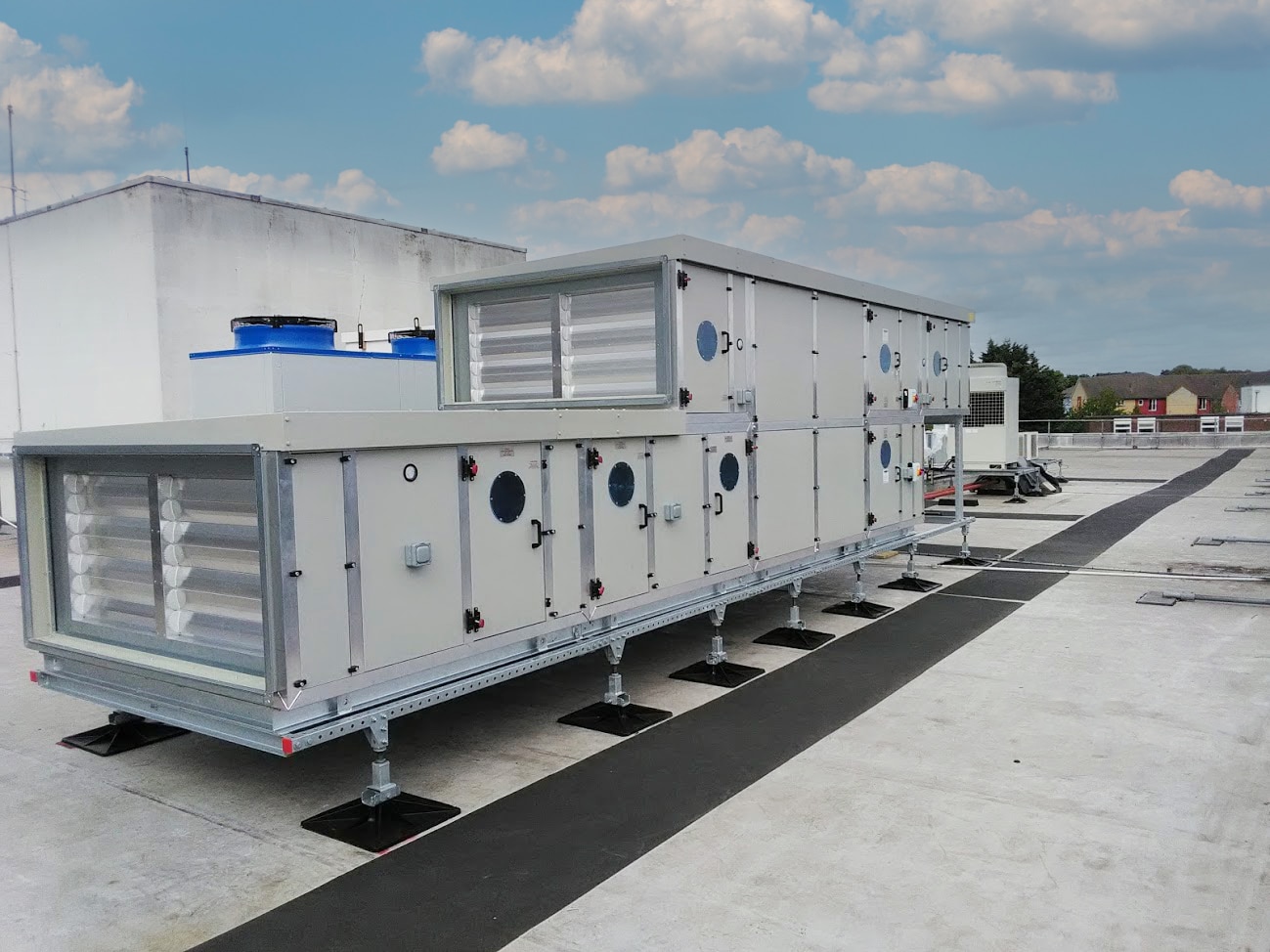

Air handling units are among the most direct levers to reduce building carbon because they combine significant electrical fan power with substantial thermal duty for heating and cooling. HVAC (Heating, Ventilation and Air Conditioning) typically accounts for 25 to 40 percent of a building’s energy use, and AHUs are often the dominant mechanical loads within that mix in high-ventilation buildings. Unlike many passive fabric measures, AHUs are discrete assets with measurable boundaries: fan power, coil duty and ventilation rates can be metered, trended and validated. That measurability makes AHU interventions attractive because they yield verifiable carbon reductions and can be rolled out in a repeatable way across an estate. For portfolio owners, this repeatability produces predictable carbon savings per site that scale across dozens or hundreds of units.

Beyond measurability and scale, AHUs are operationally important. They run when people are present, but many run continuously, often including night and weekend periods. They influence downstream plant performance. An inefficient AHU increases boiler cycling, chiller load, or both. In many systems, AHUs house gas-fired heating coils. Like central boilers, these contribute directly to onsite emissions. These direct emissions are typically categorised as Scope 1, a term defined further below. For these reasons, AHU improvement is one of the first and highest impact actions recommended in estate decarbonisation roadmaps.

Beyond measurability and scale, AHUs are operationally important. They run when people are present, but many run continuously, often including night and weekend periods. They influence downstream plant performance. An inefficient AHU increases boiler cycling, chiller load, or both. They also often house gas-fired heating coils that create Scope 1 emissions at the point of use. For these reasons AHU improvement is one of the first, highest impact actions recommended in estate decarbonisation roadmaps.

AHU upgrades are attractive because they typically offer low to medium capital cost with high measurable impact. They can eliminate local combustion, improve electrical efficiency, introduce heat recovery and improve control strategies. They also produce verifiable outcomes: specific fan power, heat recovery effectiveness and seasonal coil energy are measurable and auditable. For an estate, AHU programmes can be phased, which spreads capital and minimises disruption while delivering early wins. These features make AHU upgrades especially useful where boards and stakeholders demand tangible evidence of progress.

Carbon associated with AHUs falls into two principal buckets: operational carbon and embodied carbon:

Operational carbon is produced each hour the unit runs. It includes the electricity for supply and extract fans, the thermal energy used to heat or cool supply air, and the energy consumed by controls and ancillary systems.

Where heating is provided by on-site combustion, this produces Scope 1 emissions. Where heating, cooling and fans consume purchased electricity, this produces Scope 2 emissions.

Embodied carbon is the carbon cost of materials, manufacture, transport, maintenance and disposal. Steel frames, aluminium panels, copper coils and plastic components all carry material carbon. Filters, belts and consumables add repeated embodied carbon through replacement over time. Standards such as CIBSE TM65 provide the accepted methodology to quantify that embodied impact so it is not ignored in whole-life analysis.

To make these concepts concrete, consider a typical medium AHU. Embodied carbon ranges widely by size and material choice but commonly falls between 500 and 2,000 kgCO2e. Operational carbon will usually dominate over the life of the unit, but embodied carbon is non-trivial and must be considered when comparing a refurbishment with a complete replacement.

Underperformance arises from both poor original specification and performance degradation over time. Common technical causes and the way they translate into wasted energy include:

• Belt-driven fans and poor fan selections. Mechanical losses and fixed-speed operation result in elevated fan energy consumption and poor efficiency across varying loads.
• No variable speed drives. Fans operating at fixed speed deliver constant airflow regardless of actual demand. As there is no turndown capability, the system consumes full electrical power even when the building is operating at part load.
• Gas-fired coils. These create persistent Scope 1 emissions and prevent the site from leveraging the decarbonisation of the national electricity grid.
• Absence of heat recovery. Extracted air is expelled without reclaiming its energy content. As a result, heating plant must provide additional input to meet space conditions.
• Poor casing leakage (lower EN 1886 classes). Conditioned air escapes before delivery to the space. This increases total system energy use, as more air must be treated to achieve the same result.
• Weak or absent BMS integration. Without responsive controls, systems often run to clock schedules or fixed setpoints. This leads to wasted energy during periods of low or no occupancy.
• Dirty coils and blocked filters. These create elevated pressure drop and reduce thermal transfer efficiency. The result is higher fan energy and increased load on chillers or boilers.

Each issue above contributes to increased energy consumption and reduces both the practical service life and maintainability of the asset. The positive reality is that most can be addressed through focused engineering interventions that deliver measurable improvements.

Worked examples are essential because decision makers need realistic, auditable numbers.

Example A. Fan and control upgrade on a medium AHU

• Baseline fan energy: 100,000 kWh per year.
• Typical achievable saving from EC fans plus VSD and control tuning: 30 percent. Calculation: 100,000 × 0.30 = 30,000 kWh saved.
• Using an electricity carbon factor of 0.18 kgCO₂/kWh, CO₂ saved = 30,000 × 0.18 = 5,400 kgCO₂ = 5.4 tonnes CO₂ per year.

Example B. Heat recovery retrofit saving useful heat of 100,000 kWh per year that would otherwise come from a gas boiler

• Useful heat avoided: 100,000 kWh per year.
• Boiler efficiency assumed: 90 percent. Required fuel input = 100,000 ÷ 0.90 = 111,111 kWh of gas.
• Using a gas carbon factor of 0.184 kgCO₂/kWh, CO₂ avoided = 111,111× 0.184 = 20,444 kgCO₂ = 20.444 tonnes CO₂ per year.

Example C. Electrification comparison for 200,000 kWh useful heat per year

• Gas coil scenario: required gas input = 200,000 ÷ 0.90 = 222,222 kWh. CO₂ = 222,222 × 0.184 = 40,888 kgCO₂ = 40.889 tonnes per year.
• Heat pump COP 3.5: electricity use = 200,000 ÷ 3.5 = 57,142 kWh. CO₂ = 57,142 × 0.18 = 10,285 kgCO₂ = 10.286 tonnes per year.
• DX COP 3.0: electricity use = 200,000 ÷ 3.0 = 66,666 kWh. CO₂ = 66,666 × 0.18 = 12,000 kgCO₂ = 12.0 tonnes per year.
• Electric resistive COP 1: electricity use = 200,000 ÷ 1.0 = 200,000 kWh. CO₂ = 200,000 × 0.18 = 36,000 kgCO₂ = 36.0 tonnes per year.

These worked numbers show why heat pumps deliver the largest carbon reduction and why direct electric without high-COP plant is rarely the optimal solution for substantial heating loads.

AHU measures align directly with Scope 1 and Scope 2 carbon reductions, and also help clarify Scope 3 decisions. Replacing gas-fired heating coils with heat pump or direct expansion (DX) systems eliminates the on-site combustion associated with Scope 1 emissions. Optimising or replacing fan systems reduces electrical demand and therefore Scope 2 emissions, particularly when paired with high-efficiency controls. Where replacements use lighter materials such as aluminium, the overall embodied carbon may also be reduced. This benefit depends on the recycled content of the aluminium used, as life-cycle emissions differ significantly between primary and secondary production.

AHU projects also produce valuable operational data for TM54 analysis and corporate disclosure frameworks such as SECR and GRESB. The combination of commissioning records, BMS trends and metered energy use provides a verifiable audit trail that supports ESG reporting and Net Zero accountability.

Air handling units can be decarbonised in three main ways:

1. Refurbishment — upgrading existing casings with new fans, coils, controls, and sealing to reduce operational carbon while retaining embodied carbon.
2. Replacement with modular new units — delivering modern high-performance AHUs in sectional form, allowing rapid installation where access or footprint is limited.
3. Replacement with tailor made solutions — designing one-off AHUs for complex, critical, or high-performance environments where modular is insufficient.

Each pathway can incorporate electrification, heat recovery, and advanced controls, and in many estates a combination of refurbishment and replacement is required. Choosing the right route depends on asset condition, lifecycle stage, space and access, downtime tolerance, budget, and decarbonisation timetable.

Refurbishment is best suited to mid-life AHUs where the casing is structurally sound but energy-consuming components are obsolete. Typical interventions include:

• Replacing belt-driven fans with EC plug fans or fan walls
• Upgrading motors to IE4 or IE5 and adding variable-speed drives
• Modernising controls for demand-led ventilation and supply-air temperature reset
• Sealing casings and upgrading filters to lower resistance types

Example: Hospital theatre AHU refurbishment
• Baseline fan energy: 90,000 kWh per year
• Retrofit EC fan wall reduces consumption by 30 percent, equating to 27,000 kWh saved
• Carbon saving: 4.86 tonnes CO₂ per year at 0.18 kgCO₂ per kWh
• Cost saving: approximately £4,860 per year at £0.18 per kWh electricity
• Payback: typically under three years

Limitations
Refurbishment cannot overcome casing corrosion, poor leakage classes or lack of space for new recovery or electrification coils. Attempting refurbishment in such cases may yield short-term savings but lead to long-term failure.

Best suited to: hospitals needing minimal disruption, retail chains with many mid-life AHUs, and offices where embodied carbon retention is a key driver.

Modular AHUs are designed in factory-built sections and assembled on site. This makes them ideal when plantrooms, risers, or roof access restrict full unit delivery. Modular designs like Mansfield Pollard’s MPX or compact recovery units like Xe offer modern casing standards, integrated heat recovery, electrification-ready coils, and smart controls.

Example: Supermarket estate modular replacement

• Existing gas-fired AHUs consuming 150 MWh heating/year each.
• Replaced with modular MPX units with 70 percent plate heat recovery and heat pump coils (COP 3.5).
• Annual heating demand reduced by ~100 MWh.
• Carbon saving = ~18 tonnes CO₂/year per unit.
• Multiplied across 200 stores, this equals 3,600 tonnes CO₂/year reduction.

Advantages

• Factory-tested sections improve quality assurance.
• Rapid on-site installation reduces downtime.
• Repeatable design enables roll-out across estates.

Limitations

• Still requires craning or sectional assembly.
• May not accommodate highly specialised requirements (e.g. HTM 03-01 hospital designs, extreme acoustic performance).

Best suited to: supermarkets, universities, retail estates, and offices needing rapid, repeatable upgrades with minimum disruption.

Bespoke AHUs are designed from first principles to meet specific performance or compliance requirements. They are used where modular solutions cannot deliver the required airflows, pressures, acoustic attenuation or hygiene standards.

Example: Bespoke AHU for hospital critical care
• Requirement: compliance with HTM 03-01, including low leakage, thermal bridging control and typical 80 percent system redundancy
• Solution: custom-built AHU with heat recovery run-around coil, EC fan wall, HEPA filtration and integrated electrification-ready coils
• Benefit: removes gas-fired plant, reduces operational carbon by 60 percent and supports compliance with the NHS Net Zero roadmap

Example: Bespoke AHU for data centre cooling
• Requirement: continuous 24/7 operation with N+1 redundancy, integrated evaporative cooling and high-efficiency fan wall arrays
• Solution: custom-built containerised AHUs with engineered fan selections to achieve a Power Usage Effectiveness (PUE) below 1.2
• Benefit: enhances system resilience while aligning with ESG and sustainability targets

Advantages
• Tailored to performance, compliance and resilience requirements
• Factory-engineered with complete design flexibility
• Future-proofed for complex environments including healthcare, data centres and industrial applications

Limitations
• Higher capital cost than modular options
• Longer lead times due to full design and manufacture process

Best suited to: hospitals, pharmaceutical facilities, data centres and industrial plant with unique or critical operational requirements

Gas combustion has a relatively fixed carbon intensity, while grid electricity in the UK has fallen dramatically over the last decade and continues to trend downward. If an AHU continues to rely on gas-fired coils, a significant fraction of building emissions remains locked into Scope 1 regardless of improvements elsewhere.

Electrifying the AHU removes that constraint and enables real reductions that are measurable at asset level. It also simplifies ESG reporting because the ventilation system moves fully into Scope 2, which is typically easier to meter, verify and normalise across an estate than mixed fuel systems. Finally, electrified plant integrates naturally with other decarbonisation measures such as heat recovery and demand-led control, amplifying total savings.

There are three main routes. Each can deliver full electrification, but they differ in efficiency, capital cost, integration effort and suitability by building type.

Electric heater batteries
Electric elements installed in the supply airstream are simple, compact and quick to integrate with existing casings. They have no moving parts and are straightforward to control. Their limitation is physics: the coefficient of performance is 1, so every kWh of heat requires one kWh of electricity. They are well suited to smaller AHUs, frost protection, trim or reheat duties, and as resilient backup in hybrid strategies. For large base-load heating they are rarely the most economical option unless paired with on-site renewables or time-of-use tariffs that materially reduce cost.

Direct expansion (DX) coils with condensing units or VRF
DX coils provide reversible heating and cooling using refrigerant circulated by outdoor units. Seasonal COPs are typically higher than direct electric, often in the 2.5 to 4 range depending on ambient conditions, refrigerant and control. DX is attractive in retail and commercial settings where roof or yard space is available for outdoor units and where modular AHUs benefit from compact integrated coil sections. The key design issues are refrigerant selection and charge, line lengths, oil return, leak detection and compliance with EN 378, all of which must be addressed early to avoid commissioning delays.

Heat pump coils served by central heat pumps
Air-to-water or water-to-water heat pumps serving AHU coils offer the highest seasonal efficiency, typically achieving COPs of 3 to 5. They can be designed to deliver low-temperature hot water for space heating and supply-air reheat while also providing chilled water for cooling, enabling all-electric campuses. Heat pumps demand careful attention to source temperature, capacity at low ambient, defrost management and hydraulic integration, but in hospitals, supermarkets, universities and data centres they usually deliver the strongest carbon and lifecycle cost case.

The most important metric is seasonal COP because it governs both carbon intensity and running cost. Direct electric sits at COP 1, DX improves on that with 2.5 to 4, and central heat pumps lead at 3 to 5. Capital cost tends to move in the opposite direction, with electric batteries lowest, DX mid-range and heat pumps highest once you include external plant and distribution.

Retrofit complexity depends on available space, crane access, electrical capacity and whether existing casings can accommodate new coil depths and clearances. In constrained plantrooms, DX is often the most practical step away from gas without a full unit replacement. On new projects or major refurbishments, central heat pumps with low-temperature coils provide the best long-term platform.

Electrification succeeds or fails on details. The most common pitfalls are avoidable with disciplined design.

• Electrical capacity and diversity. Quantify the coincident electrical demand of electrified AHUs at peak heating, not just nominal coil ratings. Consider diversity across multiple AHUs, harmonic mitigation for large VSD populations, switchboard space, cable containment and emergency power strategy. Engage the DNO early if headroom is limited.
• Coil selection and psychrometrics. Size coils for realistic air-on conditions, supply air temperatures and design ambient. For heat pumps, expect lower hot-water temperatures and verify that required leaving air temperatures and reheat duties are met. Check face velocities, fin spacing and condensate behaviour to avoid carry-over and icing.
• Defrost and low-ambient operation. Heat pumps and DX systems lose capacity and enter defrost cycles at low ambient. Control sequences must prevent cold air discharge, typically via supply temperature hold, preheat stages or temporary volume reduction with pressure reset. Provide clear reversion to backup heat for resilience.
• Refrigerant safety and compliance. Select low-GWP refrigerants where practical. Design for EN 378 compliance, including leak detection, ventilation, isolation valves and safe drip trays. Respect line length and elevation limits to protect compressor life and ensure oil return.
• Integration with heat recovery. Electrification and heat recovery are complementary. Confirm pressure drops across recovery devices and optimise bypass and frost protection so that fan energy gains do not erode recovered thermal savings.
• Controls and BMS. Rewrite sequences of operation rather than grafting electric heat onto gas-era logic. Implement supply air temperature reset, demand-controlled ventilation, fan static pressure reset, coil valve authority checks and alarm strategies for plant enable, lockouts and defrost states. Trending and dashboards are essential for post-occupancy tuning.
• Acoustics and structure. Outdoor heat pumps and condensing units introduce new noise sources and mass. Validate roof loading, vibration isolation, breakout noise and boundary conditions at façades, especially for night operation.
• Water, drainage and frost. Provide reliable condensate removal, heat-trace where needed, and correctly sized traps. In cold climates or exposed rooftops, review frost coils and enclosure detailing to prevent freeze events.

Many existing units can be electrified without replacing the entire casing, provided three conditions are met.

• First, casing integrity must be adequate, otherwise the energy saved at the coil is wasted at the casing.
• Second, there must be sufficient section length and access to accommodate new coil blocks, safety clearances and maintenance space.
• Third, the plantroom or roof must support any new outdoor plant with compliant structure, access and noise control.

Where any of these conditions cannot be achieved economically, a new modular or bespoke AHU designed for low-leakage casings, larger coil face areas and integrated controls is usually the better route

A worked example illustrates the trade-offs. Assume an AHU needs to deliver 200 MWh of useful heat to supply air over a year.

• Existing gas coil. With a seasonal boiler efficiency of 0.90, fuel input is 200 ÷ 0.90 = 222 MWh. At a gas carbon factor of 0.184 kgCO₂/kWh, annual emissions are 222,000 kWh × 0.184 = 40.9 tCO₂. If gas costs £0.06/kWh, annual cost is about £13.3k.
• Heat pump coil, COP 3.5. Electricity use is 200 ÷ 3.5 = 57.1 MWh. At 0.18 kgCO₂/kWh, emissions are 57,100 kWh × 0.18 = 10.3 tCO₂. If electricity costs £0.18/kWh, annual cost is about £10.3k. That is a carbon reduction of roughly 75 percent and a cost saving of about £3k on these assumptions.
• DX coil, COP 3.0. Electricity use is 66.7 MWh, emissions about 12.0 tCO₂, cost about £12.0k at £0.18/kWh.
• Electric heater battery, COP 1. Electricity use is 200 MWh, emissions about 36.0 tCO₂, cost about £36.0k at £0.18/kWh.

Prices and carbon factors vary by contract and year, but the pattern is robust. Heat pumps usually deliver the strongest carbon and operating cost case. DX improves significantly on gas with moderate capital cost. Direct electric reduces carbon versus gas in many grid scenarios but typically increases operating cost unless paired with low-cost renewable electricity or used only for trim and backup.

Benefits are greatest where ventilation energy is a large share of total load, operating hours are long, or conditions are tightly controlled.

Hospitals and healthcare
Acute hospitals operate continuously and require elevated air change rates, filtration and close temperature control. Ventilation can account for a substantial fraction of total energy, so removing gas coils yields large Scope 1 reductions. Electrified AHUs also align with NHS Net Zero commitments and simplify HTM 03-01 compliance where heat recovery is restricted by infection control, because lower supply temperatures can be delivered efficiently with heat pumps and reheated precisely with electric trim where needed.

Supermarkets and food retail
Stores have long opening hours and high latent loads from door openings and product moisture. Many sites already have significant refrigeration plant that rejects heat. Electrified AHUs can be integrated with heat reclaim to preheat supply air, with heat pumps covering the remainder. The combination of long hours, recoverable heat and standardised unit sizes produces strong estate-wide business cases.

Large offices and campuses
Demand varies through the day and by zone. Electrified AHUs paired with demand-controlled ventilation and supply temperature reset use less energy at part load and avoid boiler cycling at low loads. For all-electric campuses, central heat pumps serving AHUs and terminal units create a consistent, low-temperature platform.

Multi-site portfolios
Retail parks, universities and commercial estates often operate many small to medium AHUs. Electrification enables a standard specification that is repeatable across dozens of sites, eliminating Scope 1 from ventilation in a controlled, auditable way and simplifying ESG disclosure.

Sequences must be rewritten for electric heat, not copied from gas systems. At minimum implement supply air temperature reset against outdoor air and internal loads, fan static pressure reset based on VAV damper positions, CO₂ or occupancy based ventilation with minimum outdoor air floors, economiser and free-cooling logic, preheat coordination with defrost states, staged or proportional electric trim reheat, and clear lockouts for conflicting modes.

Commissioning should include witnessed tests for low-ambient performance, defrost behaviour, backup heat cut-in, supply temperature stability and fail-safe states. Post-occupancy tuning using BMS trend analysis is where a large share of the real savings are realised.

AHU electrification projects fail when thermal and electrical integration is not engineered in detail. Common issues include assuming electrical headroom without verifying capacity, selecting coils without accounting for real air-on conditions and humidity, or exceeding refrigerant charge and line-length limits. Heat pump and DX systems are especially vulnerable to poor control strategies, constant-volume operation and fixed setpoints significantly undermine their efficiency.

Additional snagging often includes unmanaged condensate, missing frost protection and unacceptable noise from outdoor units. These problems are specific to the introduction of electrically driven heating and cooling, rather than general ventilation system upgrades.

The remedy is rigorous front-end engineering. This includes a measured survey, load calculations based on full psychrometric data, early engagement with the DNO, refrigerant design in accordance with EN 378, and development of controls cause-and-effect matrices prior to manufacture. All systems should be factory tested and site commissioned against defined performance acceptance criteria to ensure that electrification delivers its intended carbon and energy reductions.

Heat recovery is the process of capturing energy from exhaust air and transferring it to incoming supply air, reducing the demand on boilers, heat pumps, or chillers. In heating-dominated climates such as the UK, this typically means using warm extract air to pre-heat cold incoming air during winter. In cooling-dominated or mixed climates, recovery systems can also be used in reverse to pre-cool.

From a decarbonisation perspective, heat recovery is one of the most effective interventions because it directly reduces the thermal energy required to condition outside air. Since ventilation loads are among the largest drivers of building energy use, recovering even 60–80 percent of this otherwise wasted energy can deliver dramatic reductions in both gas and electricity consumption.

Worked Example: Large teaching building in the UK

• AHU supply: 50,000 m³/h, 10 hours/day, 5 days/week, heating season = 2,000 hours/year.
• Outdoor winter design condition: –2°C, indoor setpoint: 20°C.
• Without recovery, heating requirement = (1.2 kJ/m³·K × 22K × 50,000 m³/h × 2,000 h) ÷ 3.6 = ~733 MWh/year.
• With 70% plate heat exchanger: recovered energy = 513 MWh/year.
• Net heating requirement = 220 MWh/year.
• Saving = 513 MWh/year.
• If heated by gas (0.184 kgCO₂/kWh), avoided CO₂ = 513,000 × 0.184 = 94 tonnes CO₂/year.

This single AHU retrofit would cut gas demand by more than 500 MWh and reduce emissions by almost 100 tonnes of CO₂ annually.

There are four principal heat recovery technologies used in air handling units. Each presents specific trade-offs in efficiency, maintenance, regulatory compliance and retrofit viability.

1. Rotary thermal wheels
• High efficiency, typically 70 to 85 percent depending on wheel type and operating conditions
• Capable of transferring both sensible and latent heat, which can significantly reduce humidification and dehumidification loads
• Include moving parts, require motorised rotation and ongoing maintenance of seals
• Introduce a small but continuous electrical energy demand to rotate the wheel
• Carry an inherent risk of cross-contamination, making them unsuitable for infection-controlled or healthcare environments regulated by HTM 03-01

2. Plate heat exchangers
• Static aluminium or polymer plates with no moving parts
• Compliant with ERP 2018 minimum efficiency of 73 percent (EN 308 standard)
• Typically provide 50 to 75 percent sensible heat recovery, depending on flow balance and conditions
• Cannot transfer latent heat in standard configurations. While cross-flow enthalpy versions exist, HTM 03-01 precludes their use due to hygiene constraints associated with moisture transfer
• Add significant pressure drop and require well-engineered frost protection strategies in cold climates

3. Run-around coil systems
• Separate supply and extract coils connected by a pumped water or glycol loop
• Typical efficiency ranges from 40 to 55 percent, with ERP requirements now stipulating a minimum of 68 percent for compliant designs
• Completely eliminates risk of air-stream cross-contamination, making it suitable for healthcare environments
• Provides flexible layout options where supply and extract systems are physically separated
• Requires pumps, controls and insulated pipework, introducing parasitic electrical demand and system complexity

4. Heat pipes
• Refrigerant-based passive systems that transfer heat via a sealed phase-change cycle
• Medium efficiency of 50 to 65 percent, but limited by ERP 2018 minimum of 73 percent, which restricts their use in regulated markets
• Contain no moving parts and offer a compact footprint
• Highly dependent on correct orientation and gravitational alignment, which limits their practicality in most retrofit or modular configurations
• Rarely used in new designs due to efficiency constraints and regulatory limits

Hospitals
Due to 24/7 operation and high ventilation rates, hospitals offer significant potential for heating energy recovery. Infection-control requirements restrict the use of rotary wheels in most clinical spaces. Plate heat exchangers are the preferred solution under HTM 03-01, especially in theatres and isolation suites, due to their physical separation of air streams. Run-around coil systems are also common in large installations where physical separation of plant makes direct recovery impractical.

Universities and schools
Lecture theatres, classrooms and auditoria have high fresh air requirements, often intermittent but intensive. Thermal wheels are widely used in these settings due to their high recovery efficiency and compact footprint. They offer rapid payback where operating hours are extended or systems serve multiple zones.

Supermarkets and retail chains
Retail buildings with long operating hours and steady footfall benefit from energy recovery, particularly in standardised AHUs across estates. Thermal wheels are often preferred for their high efficiency and compact design, especially where floor space or ceiling voids are limited. Plate heat exchangers may be used where simplicity and low maintenance are prioritised.

Commercial offices
Offices with extended occupancy and demand-controlled ventilation are well suited to recovery solutions. Thermal wheels and plate exchangers help reduce heating and cooling demand while supporting compliance with TM54 modelling, NABERS UK and BREEAM certification. Recovery also improves part-load system efficiency, particularly where variable air volume (VAV) systems are deployed.

Leisure and hospitality
Swimming pools, gyms and hotels generate significant sensible and latent loads that make them excellent candidates for heat recovery. Rotary wheels or run-around coils are typically used in pool environments to preheat incoming air and support dehumidification. In hotels, guestroom ventilation systems benefit from recovery to reduce central plant load and improve overall building energy performance.

Data centres
Data centres are typically cooling-dominated and rarely benefit from traditional heat recovery within the air handling process. However, where waste heat can be captured, it is increasingly being redirected to local heat networks. This approach allows surplus thermal energy to support space heating or hot water demand elsewhere, improving site-wide carbon performance without compromising critical cooling systems.

Pressure drop
All recovery devices introduce resistance to airflow, increasing the work required from supply and extract fans. Careful selection, correct sizing and fan re-specification are essential to ensure that the energy gains from recovery are not cancelled out by elevated fan consumption.

Bypass and control
In shoulder seasons and mild weather, systems must be capable of bypassing the recovery device to avoid overheating the supply air. This can be achieved through mechanical dampers or modulated valves, depending on the recovery type.

Frost protection
Plate heat exchangers are vulnerable to freezing at sub-zero outdoor conditions. Effective strategies include preheat coils, air bypass, or flow modulation to maintain minimum temperature thresholds and prevent frost damage.

Cross-contamination
Rotary thermal wheels present a risk of extract-to-supply leakage due to rotation and pressure imbalance. This makes them unsuitable for infection-sensitive environments such as healthcare or cleanrooms.

Maintenance
Each recovery type has distinct servicing needs. Rotary wheels require periodic cleaning and seal inspection. Plate exchangers must be kept free of blockages to maintain pressure and heat transfer efficiency. Run-around coil systems require pump maintenance and periodic cleaning of coils to prevent fouling and sustain thermal performance.

Integration with electrification
Effective heat recovery reduces the thermal load on both heating and cooling coils. This lowers the required capacity of heat pumps or DX systems, improving turn-down efficiency and making low-carbon heating systems easier to size and operate.

Are there any risks if heat recovery is poorly implemented?

• Overestimated savings: If pressure drop is ignored, fan energy increases may offset heating savings.
• Frost damage: Lack of frost control can cause plates or coils to freeze, leading to catastrophic failure.
• Hygiene risks: Rotary wheels used in hospitals can transfer pathogens if not properly specified.
• Controls failure: Without good sequencing (e.g., economiser integration), heat recovery may run when not needed, wasting energy.

Heat recovery directly reduces Scope 1 emissions where fossil fuels are used for heating, and reduces Scope 2 when coils are electrified. It also supports electrification by cutting peak coil loads, allowing smaller heat pumps and lower capital costs. In embodied carbon terms, retrofitting recovery often has a favourable TM65 profile compared to full AHU replacement, making it highly defensible in ESG reporting.

Many existing AHUs can be retrofitted with plate exchangers or run-around coils, but retrofit feasibility depends on:

• Section length available for new modules.
• Access for installation (e.g., craning in new sections or breaking down for plantroom entry).
• Structural integrity of casings to handle additional pressure drop.
• Controls integration for bypass and frost.

If casings are corroded or undersized, or if recovery requires a complete redesign of the airflow path, full replacement with modular or bespoke units is often the better choice.

Controls are the brain of the air handling unit. Even the most efficient fans, coils, or recovery systems will underperform if control logic is outdated or poorly configured. Many existing AHUs still run on fixed time schedules, constant air volume, and static temperature setpoints — approaches that waste energy whenever the building is partially occupied or outside conditions are favourable.

Modern controls unlock carbon savings by making the AHU responsive. They match ventilation, heating, and cooling output to the actual needs of the space, not a theoretical worst-case design load. This reduces both Scope 1 and Scope 2 emissions by cutting wasted hours of fan energy and unnecessary coil loads.

Several control strategies consistently deliver significant carbon reductions when properly implemented:

• Demand-controlled ventilation (DCV): Adjusts outside air based on CO₂ or occupancy sensors. Prevents over-ventilation when spaces are partially occupied.
• Supply air temperature reset: Dynamically raises or lowers supply air setpoints depending on outdoor air conditions and zone demands, reducing heating and cooling loads.
• Static pressure reset: Lowers fan setpoints when downstream dampers are partially closed, cutting fan energy while maintaining comfort.
• Night set-back / shut-off: Reduces or stops ventilation in unoccupied periods, with override options for cleaning or security.
• Economiser/free cooling control: Uses cool outside air to reduce chiller loads during mild weather.
• Frost protection sequencing: Coordinates pre-heat and bypass to avoid inefficient all-year coil heating.
• Reheat optimisation: Ensures that heating and cooling do not run in conflict, especially in VAV systems.

Each strategy delivers incremental carbon savings; together, they transform the performance of existing plant.

Worked Example: Office AHU with constant-volume operation

• Baseline: Supply fan at 20 kW, operating 4,000 hours/year = 80,000 kWh.
• Static pressure reset reduces average load by 25% = 20,000 kWh saved.
• CO₂ saving = 20,000 × 0.18 = 3.6 tonnes/year.

Worked Example: University lecture theatre AHU with no supply-air reset

• Heating load without reset: 200 MWh/year.
• Resetting supply temperature upward by 2°C during mild weather cuts load by ~10% = 20 MWh saved.
• If gas-fired: 20,000 ÷ 0.9 = 22,222 kWh gas avoided = 4.1 tonnes CO₂/year.
• If electrified with heat pump COP 3.5: 20,000 ÷ 3.5 = 5,714 kWh electricity avoided = 1.0 tonne CO₂/year.

Controls alone rarely deliver headline-grabbing savings in one step, but across an estate the cumulative effect is significant. Dozens of AHUs upgraded with modern controls can save tens of thousands of kWh and hundreds of tonnes of CO₂ annually.

Digitalisation extends control strategies with monitoring, analytics, and cloud-based optimisation. Examples include:
• BMS integration: Ensures AHUs operate in sync with boilers, chillers, and room systems. Prevents conflicting heating and cooling loads.
• IoT sensors and wireless networks: Provide granular data on occupancy, IAQ (indoor air quality), and energy use without extensive rewiring.
• Cloud-based analytics: Compare actual performance with benchmarks, detect inefficiencies, and recommend corrective actions.
• Digital twins: Model AHU operation under different scenarios, helping optimise control strategies before applying them live.
• Fault detection and diagnostics (FDD): Automatically identifies stuck dampers, fouled coils, or failed actuators before they waste energy.

By moving from reactive maintenance to predictive optimisation, digitalisation ensures carbon savings persist rather than erode over time.

Controls can backfire if poorly engineered. Common pitfalls include:
• Sensor misplacement or calibration drift: Leads to false readings and incorrect control actions.
• Conflicting setpoints: Heating and cooling systems fighting each other.
• Overcomplicated sequences: Operators disable systems because they are too complex to understand or maintain.
• Lack of commissioning: Controls left at factory defaults or installed but never tuned to site conditions.
• No post-occupancy review: Without trending and adjustment, savings decay over time.

To avoid these, controls upgrades should include thorough design of sequences, witnessed commissioning, operator training, and ongoing performance monitoring.

Controls generate the data that underpins ESG disclosure. With modern BMS and IoT sensors, estates can track actual AHU energy use, ventilation rates, and CO₂ savings with high confidence. This data feeds directly into frameworks such as:

• Streamlined Energy and Carbon Reporting (SECR).
• GRESB (Global ESG Benchmark).
• Corporate Net Zero pathways.

Because controls enable both operational efficiency and auditable performance data, they are a cornerstone of demonstrating compliance and progress to stakeholders

There are various building types that can make significant gains from advanced AHU controls and digitation:

• Hospitals: 24/7 operation makes optimisation critical; demand control and reheat prevention are major opportunities.
• Universities: Large estates with many teaching spaces benefit from standardised strategies rolled out across dozens of AHUs.
• Supermarkets: Consistent ventilation across chains allows repeatable upgrades, with digital dashboards providing estate-wide oversight.
• Offices: Supply-air reset and demand control avoid over-conditioning during partial occupancy, especially in hybrid working patterns.
• Data centres: FDD and predictive analytics help maintain resilience while optimising energy efficiency.

Even the most efficient AHU will drift off-spec without proper maintenance. Filters clog, coils foul, dampers stick, sensors drift out of calibration, and control sequences are overridden. Each of these issues increases energy consumption and carbon emissions. For example, a blocked filter can add 100 Pa to system resistance, raising fan power by 5–10%. A leaking damper can allow uncontrolled outside air, increasing heating or cooling loads.

Maintenance ensures that energy savings from refurbishment, retrofit, or replacement are preserved throughout the lifecycle. In decarbonisation programmes, neglecting maintenance is one of the fastest ways to erode the carbon benefits of capital investment.

Key practices include:

• Filter management: Replace filters based on pressure drop rather than fixed time. Low-resistance filters save fan energy but must be monitored to maintain IAQ.
• Coil cleaning: Fouled coils reduce heat transfer efficiency and increase fan energy. Ultrasonic or chemical cleaning restores design performance.
• Damper inspection: Leaky dampers undermine economiser and demand-control strategies. Check seals and actuator function regularly.
• Belt/fan condition (if not EC): Belt slip and wear reduce fan efficiency. Converting to EC eliminates this risk, but where belts remain, tensioning is essential.
• Control system checks: Verify setpoints, reset logic, and sequencing. Operators often override controls temporarily and forget to restore them.
• Sensor calibration: CO₂, temperature, and pressure sensors must be checked periodically to ensure demand-led strategies work correctly.

Planned Preventive Maintenance (PPM) tailored to these elements extends AHU life, reduces failures, and locks in carbon reductions.

Commissioning gets an AHU to “work,” but optimisation ensures it works efficiently. Optimisation includes:

• Supply air temperature tuning: Raising or lowering setpoints seasonally or dynamically to minimise heating and cooling.
• Air volume adjustment: Matching airflow to actual occupancy rather than design maximums.
• Control sequence refinement: Adjusting reset parameters, economiser thresholds, or defrost cycles based on real performance data.
• Performance benchmarking: Comparing identical AHUs across a portfolio to identify underperformers.

Worked Example: Office AHU optimisation

• Baseline: AHU supply air setpoint fixed at 20°C year-round.
• Optimisation: Seasonal reset raises setpoint to 22°C in summer shoulder periods.
• Saving: ~15 MWh cooling avoided per AHU.
• Carbon saving = 15,000 × 0.18 = 2.7 tonnes CO₂/year.

Optimisation is not a one-off task but an ongoing process. Estates that continuously refine AHU settings capture an additional 5–15% efficiency compared to estates that stop at commissioning.

Digitalisation enhances both AHU monitoring and optimisation:

• IoT sensors: Provide granular data on IAQ, energy, and system health.
• Fault detection and diagnostics (FDD): Identifies failing actuators, clogged filters, or overridden setpoints automatically.
• Cloud dashboards: Allow estate-wide oversight of AHU performance, highlighting units drifting off target.
• Digital twins: Simulate AHU performance under different strategies, helping engineers test optimisation before applying changes.
• Predictive maintenance: Uses data trends to forecast failures (e.g., fan bearing wear, damper motor degradation) before they cause downtime or energy waste.

These tools ensure that AHUs remain in low-carbon operation throughout their lifecycle rather than drifting back toward baseline inefficiency.

If AHUs are neglected, the consequences are significant:

• Energy waste: Blocked filters, fouled coils, or failed recovery systems can add 10–30% to annual energy use.
• Carbon creep: A decarbonised AHU can slowly return to near-baseline emissions without detection.
• IAQ deterioration: Poor filtration or uncontrolled air volumes compromise occupant health and comfort.
• Unplanned downtime: Failures are more likely, disrupting critical spaces such as hospital theatres or data halls.
• Shortened asset life: Neglected AHUs require premature replacement, adding embodied carbon.

These risks directly undermine Net Zero pathways and ESG commitments.

Proactive maintenance ensures operational carbon reductions remain permanent and verifiable. Continuous monitoring provides data to support ESG disclosure under SECR, GRESB, and corporate Net Zero pathways. TM54 requires operational energy data; without monitoring, compliance is impossible. TM65 embodied carbon assessments also benefit, as refurbishment and extended service life reduce replacement frequency.

In other words, maintenance, monitoring, and optimisation are not secondary to decarbonisation  they are the means of protecting the investment and ensuring savings persist.

Proactive maintenance ensures operational carbon reductions remain permanent and verifiable. Continuous monitoring provides data to support ESG disclosure under SECR, GRESB, and corporate Net Zero pathways. TM54 requires operational energy data; without monitoring, compliance is impossible. TM65 embodied carbon assessments also benefit, as refurbishment and extended service life reduce replacement frequency.

In other words, maintenance, monitoring, and optimisation are not secondary to decarbonisation  they are the means of protecting the investment and ensuring savings persist.

The embodied carbon of an AHU depends on size, materials, and complexity. Industry guidance from CIBSE TM65 and Environmental Product Declarations (EPDs) suggests:

• Small to medium AHUs: 500–2,000 kgCO₂e.
• Large bespoke AHUs: 3,000–10,000 kgCO₂e or more.

Worked Example: Medium modular AHU

• Steel casing and frame: ~1,000 kg at 1.9 kgCO₂e/kg = 1.9 tonnes CO₂e.
• Aluminium panels and profiles: ~400 kg at 9 kgCO₂e/kg = 3.6 tonnes CO₂e.
• Copper coils and piping: ~200 kg at 2.1 kgCO₂e/kg = 0.4 tonnes CO₂e.
• Motors, electronics, insulation, filters: ~0.5 tonnes CO₂e.
• Total embodied carbon = ~6.4 tonnes CO₂e.

This can be equivalent to several years of operational carbon savings, meaning the timing of replacement is as important as the efficiency of the new unit.

Over a 20-year lifecycle, operational carbon normally dominates. For example:

Scenario: 50,000 m³/h AHU running 4,000 hours/year

• Fan and coil energy = 400 MWh/year.
• At 0.18 kgCO₂/kWh, annual operational emissions = 72 tonnes CO₂.
• Over 20 years = 1,440 tonnes CO₂.

Compared to an embodied carbon footprint of 6–8 tonnes CO₂e, operational emissions are much larger. However, if a unit is replaced prematurely, embodied emissions add up across the estate and erode net savings. Balancing embodied and operational carbon is therefore essential.

Refurbishment retains the casing, frame, and most materials, avoiding the need for new steel and aluminium production. Only components such as fans, coils, and controls are replaced.

Example: Hospital AHU refurbishment

• New fans, coils, and controls: ~1 tonne CO₂e embodied carbon.
• Replacing entire AHU: ~7 tonnes CO₂e embodied carbon.
• Avoided embodied carbon = ~6 tonnes CO₂e.
• Combined with 20 tonnes/year operational savings, refurbishment often delivers the best short-term carbon balance.

• Modular replacements: Standardised designs can optimise material use and reduce waste. Embodied carbon per unit can be lower than bespoke if roll-out efficiency is achieved. However, full replacement always carries higher embodied carbon than refurbishment.
• Bespoke replacements: Larger structures and custom materials increase embodied carbon. These units are justified where performance or compliance demands cannot be met by modular or refurbishment options. For example, HTM 03-01 compliance or data centre resilience requirements.

Lifecycle assessments must weigh the embodied carbon against operational savings. A poorly performing legacy AHU may burn enough extra energy in one or two years to outweigh the embodied cost of replacement.

The industry standard is CIBSE TM65. This methodology estimates embodied carbon based on material quantities, manufacturer data, or Environmental Product Declarations (EPDs).

Key steps include:

• Breaking down components into material categories (steel, aluminium, copper, plastics, insulation).
• Applying published carbon factors for each material.
• Accounting for manufacturing processes, transport, and end-of-life scenarios.
• Reporting in kgCO₂e for modules A (upfront), B (use phase), and C (end of life).

Some manufacturers are beginning to publish EPDs for AHUs, which provide more accurate cradle-to-grave embodied carbon data. Estates increasingly require TM65 outputs in tender submissions to demonstrate whole-life carbon responsibility.

At portfolio scale, embodied carbon becomes a strategic driver:

• Hospitals: Refurbishing mid-life AHUs avoids large embodied carbon spikes while still achieving significant operational savings.
• Supermarkets: Rolling out modular replacements across hundreds of stores accumulates embodied carbon quickly, so phased refurbishment-then-replacement programmes are preferred.
• Universities and offices: TM65 reporting is often required to meet ESG disclosure frameworks such as GRESB, influencing procurement choices.

Balancing embodied and operational carbon ensures estates do not simply “churn” equipment in the pursuit of operational efficiency but achieve real net reductions in total lifecycle emissions.

The most important regulatory framework governing AHU performance is the Ecodesign Directive, often referred to as ErP. This sets minimum energy performance standards for ventilation units across both the UK and EU. For non-residential AHUs, the directive mandates:

•  Fan efficiency: Specific Fan Power (SFP) limits based on unit configuration and airflow
•  Heat recovery: Minimum thermal efficiency thresholds depending on system type and application, in line with EN 308 methodology
•  Motor efficiency: Legal requirement for IE3 motors as a minimum for most power ratings, with IE4 motors used in high-efficiency designs
•  Control capabilities: Requirement for integrated control systems, including demand-led ventilation where applicable

These standards apply at the point of sale. All new AHUs placed on the market must meet or exceed Ecodesign thresholds. For refurbishment or retrofit projects, system performance should be benchmarked against these standards to ensure regulatory equivalence and long-term viability.

BS EN 1886:2025, which recently replaced the 2007 version of the standard, defines the mechanical and thermal performance classifications for air handling unit casings. It is a foundational specification that governs leakage integrity, thermal efficiency and structural resilience — all of which directly influence the energy and carbon performance of AHUs.

Key casing performance parameters include:

• Air leakage (L1–L3): Now tested with updated pressure-tier brackets aligned to fan system duty, with leakage still assessed at 400 Pa and optionally at 700 Pa
• Thermal transmittance (T1–T5): Retains existing classes, but with more consistent test rig calibration and panel measurement accuracy
• Thermal bridging (TB1–TB5): Includes revised correction factors to better reflect true frame continuity across varied temperature gradients
• Mechanical strength and deflection (D1–D3): No change in classes, but testing methods now enforce stricter geometry and measurement fidelity

From a decarbonisation perspective, BS EN 1886:2025 reinforces the need for low-leakage, thermally efficient casing design. For example, a unit classified as L3 may leak up to 6 percent of conditioned air, wasting fan energy and compromising control. In contrast, an L1 unit with less than 0.15 percent leakage ensures that the energy used in heating, cooling or humidifying the supply air is not lost through casing inefficiency.

The revised standard also introduces optional reporting fields for component energy class, leakage as a percentage of fan duty, and material recyclability. These additions support whole-life carbon assessments and allow designers to align mechanical specifications with broader sustainability and Net Zero goals.

HTM 03-01 sets specific ventilation standards for UK healthcare facilities. Key implications for decarbonisation include:

• Filtration requirements: High-efficiency filters increase pressure drop, so fans must be upgraded to maintain performance efficiently.
• Cross-contamination control: Rotary wheels are typically prohibited in clinical areas, so run-around coils are required for heat recovery.
• Redundancy: N+1 fan arrangements and dual supply lines are often required, influencing refurbishment and replacement strategies.
• Criticality of downtime: AHU refurbishment must often be phased or delivered out-of-hours to avoid service disruption.

For NHS estates, HTM 03-01 compliance is non-negotiable, meaning AHU decarbonisation must be achieved without compromising infection control or patient safety.

Beyond engineering standards, AHU decarbonisation is shaped by broader frameworks:

• UK Net Zero Strategy (2050 target). Requires elimination of fossil fuel combustion in buildings, making electrification of AHUs essential.
• NHS Net Zero Carbon Roadmap. Targets Scope 1 and 2 elimination by 2040, driving removal of gas-fired coils.
• GRESB and SECR. Require disclosure of carbon savings from building systems, including AHUs.
• Corporate ESG commitments. Many organisations commit to Science-Based Targets (SBTi) that require evidence of carbon reductions at asset level.

These frameworks mean that AHU upgrades are not just technical choices but central to corporate reporting and compliance.

Failure to align AHU upgrades with regulations and standards carries major risks:

• Non-compliance fines or rejection of planning approval.
• Inability to operate in regulated sectors (e.g., healthcare) without HTM compliance.
• Underperforming systems if minimum efficiency standards are not met.
• Missed ESG credits in GRESB or other reporting schemes.

Reputational damage if upgrades fail to align with Net Zero commitments

Best practice is to integrate regulatory and decarbonisation requirements at the design stage:

• Benchmark AHU performance against Ecodesign, Part L, and EN 1886.
• Use CIBSE TM54 modelling to predict operational savings.
• Include TM65 embodied carbon assessments in procurement.
• Align with sector frameworks (e.g., HTM 03-01 for NHS).
• Require suppliers to provide evidence of compliance through factory testing and certification.

This approach ensures AHU projects not only meet legal obligations but also deliver measurable, reportable carbon reductions aligned with corporate Net Zero strategies.

CIBSE provides technical guidance widely used by engineers:

• Guide B2: Details on ventilation and air handling design, including SFP targets and energy efficiency options.
• TM54: Predicting operational energy use, critical for validating AHU savings in practice.
• TM65: Assessing embodied carbon, required increasingly in tender submissions.
• AM17: Guidance on heat pumps, relevant for electrifying AHU coils.

These documents set the engineering context and provide methodologies that align with best practice and ESG reporting requirements.

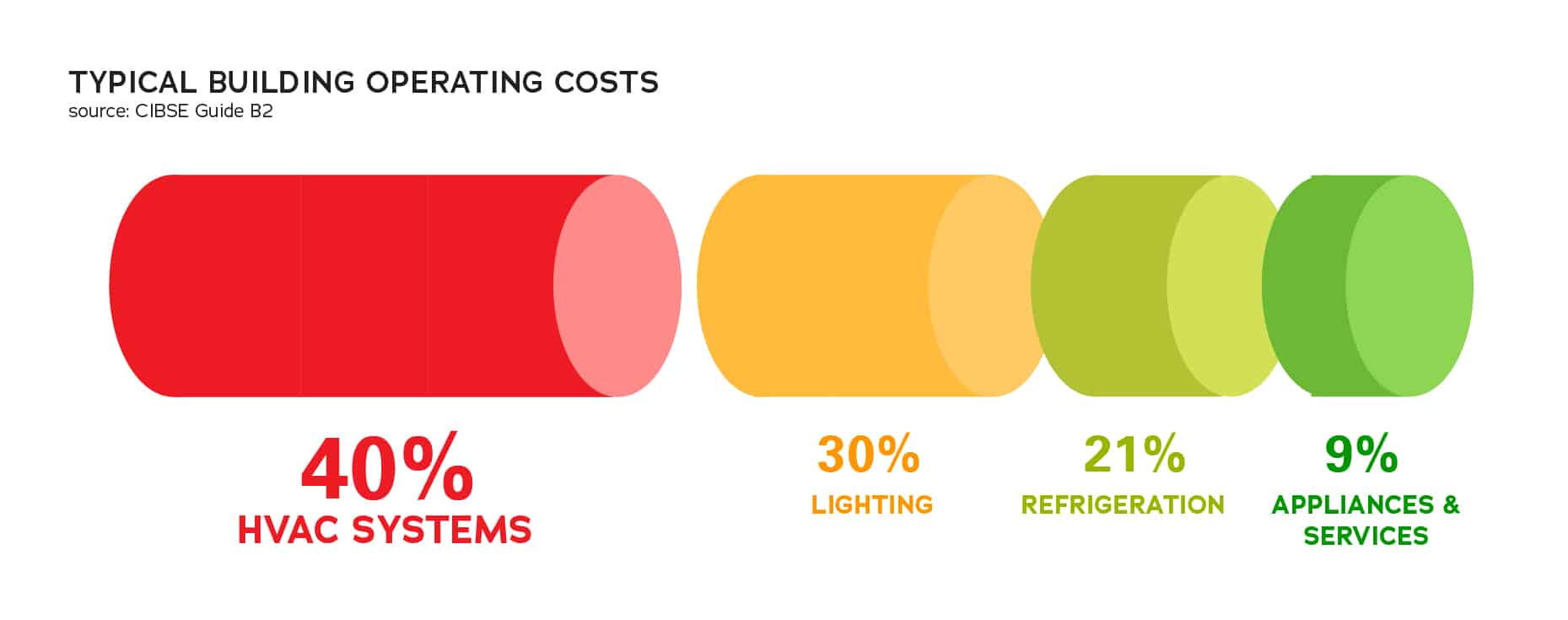

Ventilation systems are one of the largest contributors to building energy consumption. In commercial buildings, AHUs can account for up to 40% of total HVAC energy use, which in turn can represent 40% or more of total building energy consumption. Because AHUs are continuous-load systems, even modest efficiency improvements translate into large absolute savings.

Decarbonising AHUs therefore directly supports estate-wide targets by lowering both Scope 1 (gas-fired coils) and Scope 2 (electricity for fans and cooling) emissions. Just as importantly, AHUs influence occupant comfort, indoor air quality, and compliance with standards. They are both a carbon reduction opportunity and a strategic enabler of healthy, high-performing buildings

AHU upgrades rarely occur in isolation. They are most effective when integrated with wider building strategies:

• Heat pumps: AHU coil electrification aligns with a building’s transition away from fossil fuel boilers.
• Building fabric upgrades: Improved insulation and airtightness reduce heating loads, allowing AHU supply air temperatures to be reset and fan energy reduced.
• Lighting and equipment efficiency: Lower internal gains can change cooling loads, requiring recalibration of AHU sequences.
• On-site renewables: AHU efficiency improvements reduce overall load, making solar PV or wind integration more impactful.
• Smart building platforms: AHUs are often the largest controllable load in a building and are key assets for demand response and load shifting.

Corporate Net Zero strategies require measurable reductions in operational carbon. AHU upgrades contribute by:

• Eliminating Scope 1 emissions through electrification of heating coils.
• Reducing Scope 2 emissions by cutting fan and cooling loads through refurbishment, retrofit, and recovery.
• Reducing embodied carbon by choosing refurbishment or modular replacement over premature disposal.
• Providing auditable data from modern controls and monitoring systems for ESG disclosure.

Because AHUs often operate across large estates, cumulative savings can be enormous. A 10% reduction in AHU energy use across 100 supermarkets can equate to thousands of tonnes of CO₂ saved annually.

Taking a portfolio-wide approach delivers benefits that go beyond single projects:

• Consistency: Standardised refurbishment or replacement packages simplify procurement and ensure predictable savings.
• Economies of scale: Bulk purchasing and repeatable designs reduce unit cost.
• Data visibility: Estate-wide monitoring platforms allow benchmarking and optimisation across hundreds of units.
• Strategic planning: Phased upgrades align with capital budgets and Net Zero milestones.
• ESG reporting confidence: Consistent methodology ensures reliable disclosure to stakeholders.

Prioritisation should be based on:

• Condition surveys: Identify AHUs near end-of-life versus those suitable for refurbishment.
• Carbon impact: Model which units deliver the largest absolute savings (e.g., 24/7 hospital AHUs).
• Compliance risk: Address units that fail to meet EN 1886, HTM 03-01, or Part L requirements first.
• Disruption tolerance: Schedule upgrades for buildings or areas where downtime can be managed.
• Estate strategy: Align with wider electrification, renewable, and ESG timelines.

A decision matrix weighing condition, carbon savings, cost, and disruption is often used to map out a phased estate programme.

Mansfield Pollard delivers decarbonisation across refurbishment, modular, and bespoke AHUs, enabling estates to:

• Audit existing assets with condition surveys and energy modelling.
• Select refurbishment, modular, or bespoke replacement depending on lifecycle stage.
• Phase delivery across estates to maximise early carbon savings.
• Integrate AHU upgrades with wider building electrification and Net Zero programmes.

By aligning technical solutions with estate-level strategy, Mansfield Pollard ensures AHU decarbonisation delivers maximum impact and measurable ESG outcomes.

Many AHU decarbonisation projects underperform because assumptions made at the design stage are not validated in practice. Surveys may miss critical information, component selections may be mismatched, or controls may not be re-engineered to suit the new equipment. As a result, upgrades that should deliver 20–40% energy savings sometimes achieve only 5–10%.

Failure usually arises from three areas: incomplete pre-project assessment, poor integration during delivery, and lack of monitoring after handover.

Electrification delivers large carbon reductions, but poorly planned upgrades often fall short. Common errors include:

• Ignoring electrical capacity: New DX or heat pump coils can overload switchboards if headroom is not checked.
• Oversizing coils: Incorrect selections lead to excessive fan resistance and pump power.
• Inadequate defrost strategies: Heat pumps underperform in cold conditions if sequences are not carefully engineered.
• Stranded assets: Replacing a gas coil just before a site-wide boiler decommissioning programme wastes capital and embodied carbon.

Proper load calculations, electrical surveys, and integration with estate-level electrification strategies prevent these mistakes.

Heat recovery is one of the most effective decarbonisation measures, but retrofits can fail if not engineered carefully. Pitfalls include:

• Underestimating pressure drop: A new plate heat exchanger adds resistance, which may increase fan power enough to offset savings.
• Inadequate frost protection: Without pre-heat or bypass control, plates can freeze in sub-zero conditions and fail.
• Cross-contamination risks: Rotary wheels in healthcare can transfer pathogens if not excluded.
• Bypass dampers not working: If dampers leak, effectiveness is lost.

These risks highlight the need for detailed fan and psychrometric calculations, frost design checks, and commissioning of bypass systems.

It is common to see refurbished AHUs with new EC fans or variable-speed drives that show little improvement in energy bills. The main reasons are:

• Fans are installed without recalculating system resistance, so they operate inefficiently.
• Controls are bolted on but sequences are left unchanged, leaving fans running in constant-volume mode.
• Sensors are miscalibrated, giving false signals to demand-control logic.
• Operators override controls after complaints and forget to reset them.

Without re-engineering controls and verifying system integration, new fans and controls cannot deliver their full savings potential.

Even well-designed projects lose effectiveness without sustained maintenance. Once upgraded, an AHU still relies on the performance of consumables, controls and moving parts to maintain energy and carbon benefits. Typical failure points include:

• Clogged filters: A 100 Pa increase in pressure drop can raise fan energy consumption by 10 to 15 percent if airflow remains constant
• Fouled coils: Dirt accumulation on heating or cooling coils reduces thermal transfer efficiency, forcing longer run times and higher load on plant
• Sensor drift: CO₂ or temperature sensors that fall out of calibration can disable demand-control logic, causing systems to run at full load unnecessarily
• Disabled recovery systems: Heat recovery wheels or coils that are bypassed after faults or alarms are often not reinstated, reducing overall system efficiency

Without proactive maintenance and ongoing performance monitoring, even high-efficiency AHUs can revert toward baseline energy use within months. Planned servicing, recalibration and periodic re-commissioning are critical to ensure that decarbonisation gains are retained over time.

AHU decarbonisation is complex. It requires detailed surveys, correct component selection, integration of fans, coils, and controls, and careful phasing to avoid operational disruption. Projects often fail not because of the technology but because of fragmented delivery and lack of accountability. Choosing the right partner ensures that design, manufacture, installation, and commissioning are coordinated, savings are validated, and risks are managed.

The most effective partners combine engineering capability with delivery experience. Key areas of expertise include:

• Refurbishment and retrofit design: Understanding when existing casings can be reused and how to integrate new fans, coils, and controls.
• Modular and bespoke manufacture: Ability to deliver both repeatable modular solutions and one-off designs for critical environments.
• Electrification integration: Experience with DX, VRF, and heat pump coils, and the electrical and control upgrades these require.
• Compliance knowledge: Familiarity with EN 1886, Ecodesign, HTM 03-01, TM54, and TM65.
• Controls engineering: Capability to re-engineer control logic, not just install hardware.
• Site delivery: Expertise in sectionalisation, cranage, plantroom logistics, and phased rollouts.

A partner lacking in any of these areas may compromise project outcomes

Clients should evaluate partners using both technical and organisational criteria:

• Technical track record: Evidence of completed refurbishment, modular, and bespoke projects across relevant sectors.
• Factory capability: Size, capacity, and equipment to deliver large, complex projects (e.g., welding, CNC, fan array testing).
• Quality assurance: ISO 9001, EN 1886 test facilities, and factory acceptance testing.
• Sustainability credentials: Carbon-neutral operations, TM65 reporting, and embodied carbon expertise.
• People and culture: Highly skilled, engaged staff with strong retention and training records.
• References and case studies: Proof of delivering savings, compliance, and successful estate programmes.

The next decade will see AHUs evolve from static ventilation units into intelligent, integrated energy systems. Key innovations include:

• High-efficiency heat pumps integrated directly into AHUs for fully electric heating and cooling.
• Next-generation heat recovery devices with efficiencies above 85%, using novel materials and coatings.
• Advanced fan arrays with AI-driven optimisation to balance redundancy, efficiency, and acoustics in real time.
• Hybrid systems that combine mechanical ventilation with natural ventilation where conditions allow.
• Lightweight materials such as aluminium profiles and composites, reducing embodied carbon without compromising strength.

These innovations will push both operational and embodied carbon performance beyond today’s benchmarks.

Digitalisation will shift AHUs from passive assets to continuously optimised systems. Trends include:

• AI-driven controls that predict demand based on occupancy, weather forecasts, and energy pricing.
• Digital twins that simulate AHU performance, enabling predictive optimisation and scenario testing before changes are applied.
• Cloud-based analytics for estate-wide benchmarking and automated performance alerts.
• Integration with smart grids to enable demand response, shifting ventilation loads to times of low carbon intensity.

These tools will ensure that AHU performance remains optimised throughout the lifecycle, closing the performance gap between design intent and real-world operation.

Embodied carbon will become as important as operational energy. Designers will increasingly:

• Use CIBSE TM65 assessments at concept stage to compare material choices.
• Select low-carbon materials such as recycled aluminium and steel.
• Design AHUs for disassembly and reuse, enabling panels, coils, and fans to be repurposed at end-of-life.
• Offer Environmental Product Declarations (EPDs) as standard for procurement.

Clients will demand not only energy-efficient AHUs but also units that demonstrate minimal lifecycle impact.

Regulatory pressure will intensify as Net Zero targets approach:

• Tighter Ecodesign standards will raise minimum fan, motor, and recovery efficiencies.
• Stricter building regulations will mandate electrification of heating systems and higher airtightness standards.
• Healthcare compliance will require HTM 03-01 units to deliver both safety and carbon reduction.
• Corporate ESG reporting will demand transparent operational and embodied carbon data for all HVAC equipment.

Estates that fail to modernise AHUs in line with these regulations risk non-compliance, reputational damage, and escalating costs.

Estates need to balance immediate carbon reductions with future readiness. Best practice is to:

• Prioritise refurbishment where embodied carbon savings are strongest, but design upgrades with electrification in mind.
• Adopt modular replacements that can be rolled out across estates quickly, standardising performance and compliance.
• Invest in bespoke units where compliance or resilience demands exceed modular capability.
• Specify controls and monitoring that can integrate with future digital platforms and ESG reporting.
• Choose partners with a clear roadmap for innovation, not just today’s compliance.

By acting now with a future-proof mindset, estates can avoid stranded assets and ensure AHUs continue to support Net Zero pathways well into the 2030s.

Mansfield Pollard is actively developing the next generation of AHUs:

• Electrification-ready designs with integrated heat pump coils.
• Lightweight modular aluminium enclosures (ALX) reducing embodied carbon.
• Advanced fan arrays designed for resilience and efficiency.
• Digital integration through smart controls, monitoring, and TM54/TM65 outputs.
• Sustainability leadership as a carbon-neutral business with a clear roadmap to 2026 and beyond.

By combining innovation, compliance expertise, and carbon responsibility, Mansfield Pollard ensures clients benefit from AHUs that are not only efficient today but also aligned with the future of building decarbonisation.
